Delivery trucks and semis hit the same corner of your dock thousands of times yearly. Winter salt pools at the pit. Steel dock plates drag the leading edge. Standard concrete fails in five years under that punishment. Oshawa Concrete pours loading docks engineered for the actual truck loads you receive, with pit drainage that works and steel edge protection that lasts. Free written estimate on every project.

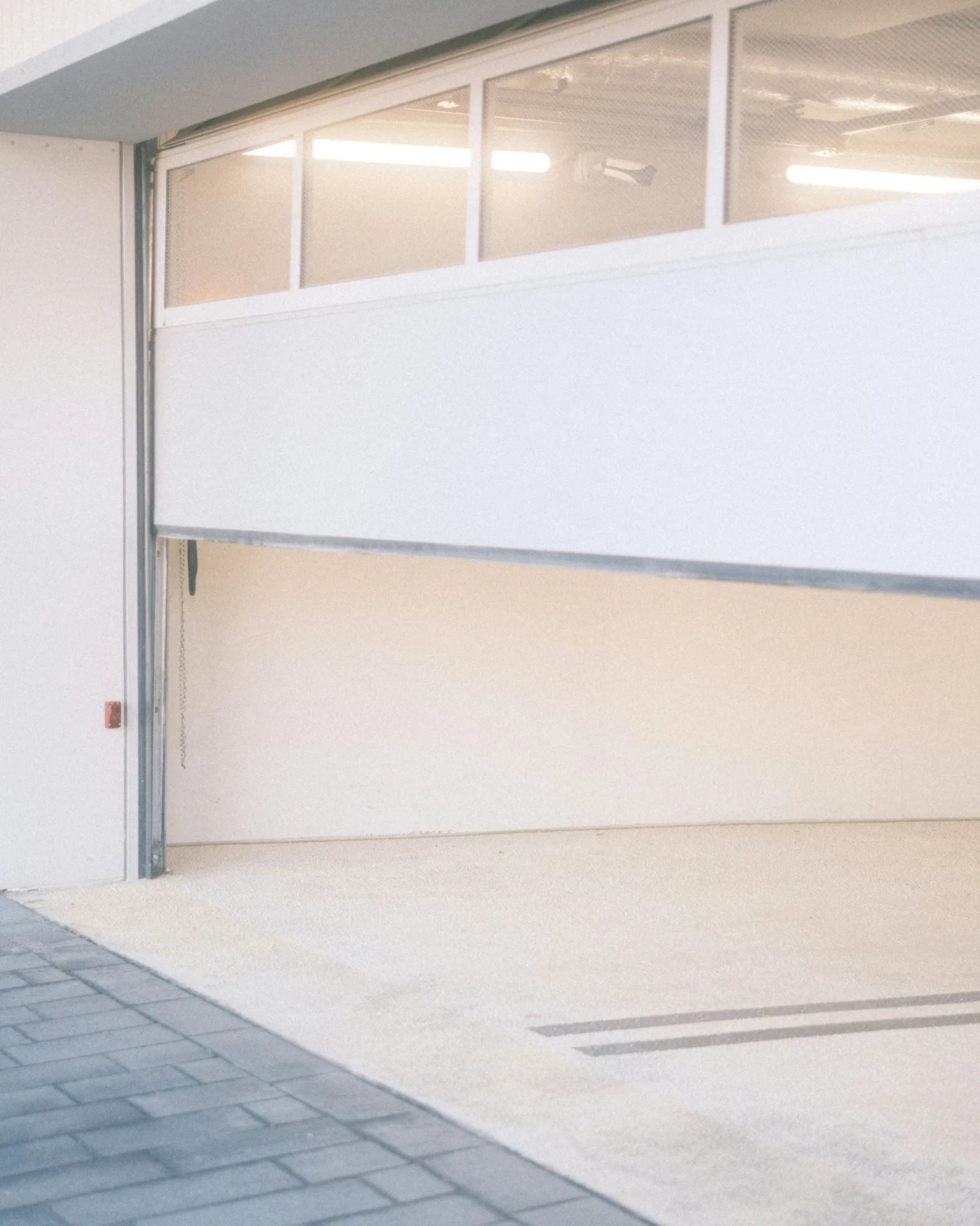

A loading dock is not a parking lot. The rear wheels of a truck land on the same 18-inch square of apron concrete every single day. That concentrated point load, repeated thousands of times, breaks down a standard slab in half the time it would last elsewhere. Add winter salt pooling at the pit, freeze-thaw cycles, and steel dock plates dragging across the leading edge, and a parking-lot spec concrete becomes a liability.
The fix is engineering. We pour dock slabs thicker than the surrounding lot, with reinforcement concentrated at the wheel-load zone. A steel edge angle is cast into the leading edge to absorb the dock-plate abuse. The apron slopes away from the pit (not into it, which is the most common mistake we see on failed docks). Pit drainage is planned so water runs off, not pooled.
This approach carries through our entire parking lot work and our broader site concrete scope. Each concrete type gets its own spec. We also handle equipment pads and other site work with the same precision.
Recent work
The sequence
How We Pour a Loading Dock Slab in Oshawa
Assess truck loads and site conditions
We measure the pit footprint, confirm the truck types and weights, identify any existing dock-leveler or equipment that needs embeds, and plan the apron slope and drainage path before any forms go down.
Prepare pit and apron base
The pit is excavated to depth, the apron subgrade is compacted, gravel base is laid, and any pit drainage lines are run. Forms are set to the engineered dimensions and checked for level and slope.
Set reinforcement and embeds
Rebar is tied to spec with extra steel at the wheel-load zone. Steel edge angles are positioned at the leading edge with embed studs welded in place. Any dock-leveler anchor bolts or channels are set at the coordinates the supplier provides.

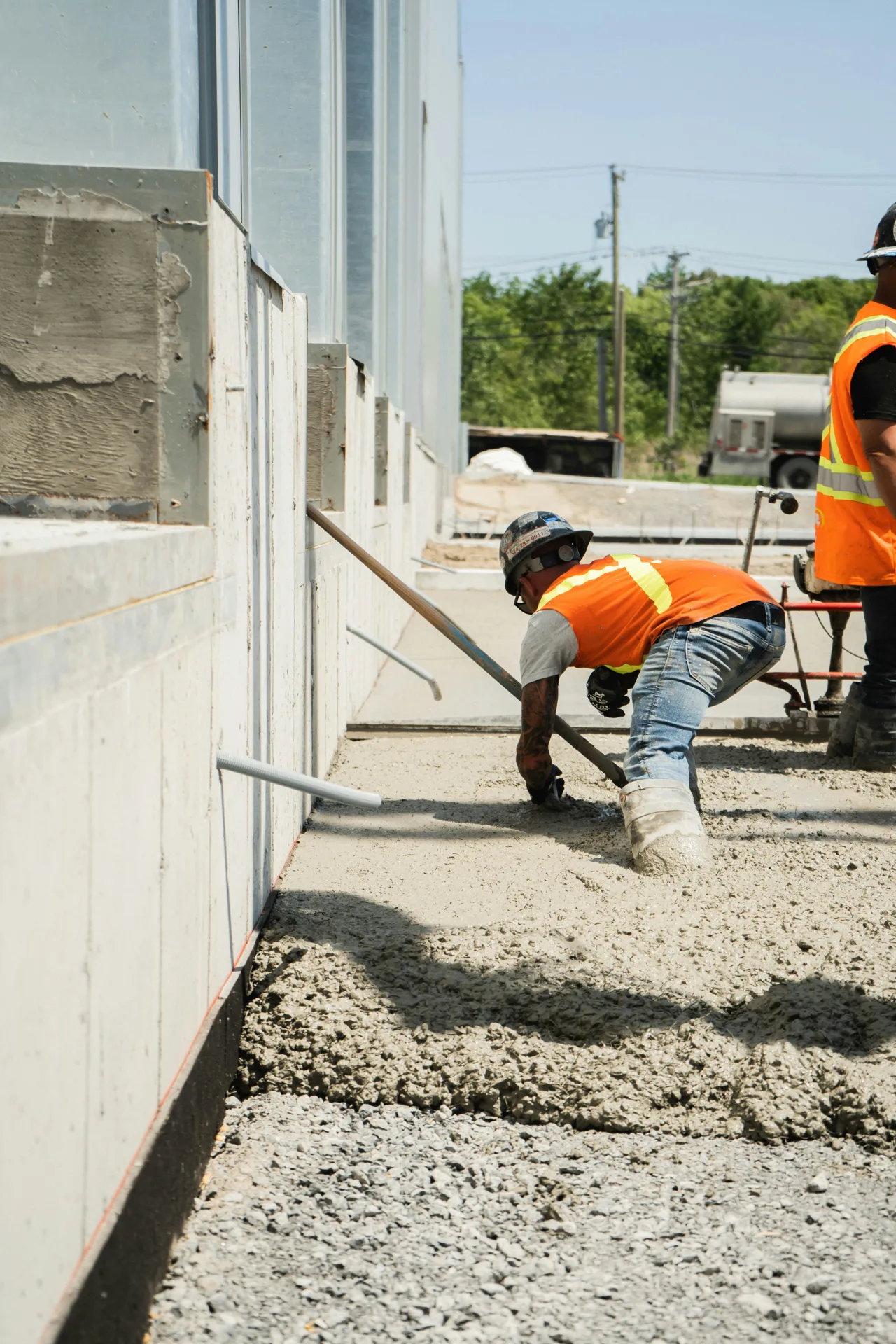

Pour, finish, and harden
Concrete is placed and consolidated into the forms. The apron is finished with a slope that drains away from the pit. A hardener is applied to the high-wear areas. The slab cures per spec before the dock leveler is installed.
When docks need repair
Fixing a Failed Loading Dock Means Finding the Root Cause
A spalled edge or cracked apron is a symptom, not the problem. The real issue is almost always the original engineering. The slab was poured too thin, the steel edge angle was never installed, the apron slopes the wrong direction (into the pit instead of away), or the reinforcement was undersized for the truck loads. Repair that only patches the symptom will fail again in a few years.
We assess every failed dock by asking what went wrong on day one. If the slab beneath is sound and only the edge is damaged, we cut out the failed section and retrofit a steel edge angle. If the whole apron was engineered wrong, we recommend a full replacement built to the correct spec. This same diagnostic approach applies to our parking lot repair work and all our commercial concrete projects.
Slab specs, steel edges, dock-leveler embeds, drainage and when to repair vs replace.
Because they take concentrated repeat loads at a single point (the truck rear-wheel landing spot), steel-on-concrete abuse from dock plates, and concentrated water/salt at the pit. A parking-lot spec slab fails inside five years at a loading dock; the dock spec is different by design.
It protects the leading edge of the dock from the steel dock plates that drag across it during loading. Without it, the concrete edge spalls within a year of regular dock-plate use. The angle is cast into the pour with embed studs that anchor it permanently.
Yes. We coordinate with the dock-leveler supplier to set their embeds (anchor bolts, channels) at the right positions before the pour. Adding them after the pour is messy and rarely fits as cleanly; integrating them up front is the right way.
Always away from the pit. The slope drains meltwater and rain off the apron toward the parking lot or a catch basin, never into the pit which catches enough water on its own from the open dock door. Reverse-sloping into the pit is the most common failed-dock pattern we see.
Depends on the cause. Localised spalling at the edge with a sound slab beneath, sectional repair plus a steel edge retrofit works. Systemic failure from wrong original engineering (too-thin apron, no reinforcement, reverse slope), a new dock is the honest answer.
Client reviews
What Oshawa Operations Say About Their Loading Docks
Replaced a dock that had failed at six years. New apron engineered for our truck loads, steel edge angle cast in, sloped away from the pit. Three years in, zero spalling. Built to last this time.
X. L.
Logistics Manager, Oshawa
★★★★★
They identified the original dock was reverse-sloped into the pit, which was the cause of the failure. New dock slopes away. Pit stays dry, edge intact, trucks back in without abuse.
Y. L.
Warehouse Director, Toronto
★★★★★
Coordinated with our dock-leveler supplier to set the embeds in the new pour. Leveler dropped in cleanly afterward, no improvisation needed. Real trade coordination.
Y. I.
Industrial Facility Manager, Brampton
★★★★★
Edge repair on three docks instead of full replacement. They were honest that the slab beneath was sound, only the edge needed work. Added steel angles to all three, no spalling since.
Q. H.
Distribution Center Operations, Mississauga
From the blog
Concrete Guides & Articles
Practical reading on planning, finishes and caring for concrete in Oshawa.
Tell us the truck types and weights, whether this is new construction or repair, and any dock-leveler or scheduling details. We will assess on-site and send a written quote within one business day.
